Categorizing and Enriching Security Events in an ELK with the Help of Sysmon and ATT&CK

Lately, I have been working on a few projects such as OSSEM, HELK and ThreatHunter-Playbook with a main goal of integrating all of them and starting to document and define how data can drive categorization and prioritization of detection analytics.

I also had the opportunity to present with @_devonkerr_ from Endgame at BSidesCharm at the beginning of the year about "Quantifying Your Hunt".  We talked about how we could start measuring detection capabilities by mapping available data sources to MITRE ATT&CK Techniques. I enjoyed our conversation because we were able to prioritize specific data sources we could use to increase visibility across several ATT&CK techniques. One particular free tool that provided a lot of context across several techniques was Sysmon. I loved the fact that by linking security events to techniques, we could also start prioritizing the development of ATT&CK-based analytics.

One of the challenges that I faced with Sysmon was the fact that even though I was able to collect data and categorize events by the specific Sysmon Event IDs, it was hard to know what specific Sysmon rules were triggering every time an event was created. This was necessary to automatically map security events and potential incidents to ATT&CK techniques information. It could also help to understand the volume of specific data being collected per technique.

Thanks to the recent update to Sysmon (Version 8.0), tagging Sysmon rules is now possible, and makes things much easier to add extra metadata to Sysmon events.

In this post, I will show you a basic example of Sysmon rule tagging and how you can scale it with the right parser in solutions like HELK. I will share a few initial thoughts on how to utilize these new capabilities. NOTE: While I was testing a few things to write this blog post, @olafhartong published also his first attempt with the new version of Sysmon. I highly recommend checking out his post "Sysmon 8.0, a leap forward in event annotation". It has a similar basic example to start. Great work Olaf!!

Install Sysmon v8.0

The download and install process is very straight forward. One thing to remember is that with Sysmon version 8.0 the configuration schema version is now 4.1. I updated my basic Sysmon Config that I usually use to start logging events and creating a baseline of my lab environment. Feel free to download it and use it to start.

Figure 1: Part of initial Sysmon Configuration

Figure 2. Install Sysmon with specific configuration

So, What Is New?

In order to know right away about the new metadata added to the events, I decided to start a process and check the event schema. I launched Calculator.exe as shown in the image below. As you can see, there is a new data field named "RuleName". It is blank because I did not tag a Sysmon rule to include events generated or related to Calculator.exe.

Figure 3. Open Calculator and check the event log

Another great way to gather information about the Sysmon schema was posted by @olafhartong and can be found here. I like that approach because it will help me a lot to update all the Sysmon dictionaries I put together for Sysmon data in OSSEM right away. However, there is always extra metadata generated by the system that still needs to be parsed and is not in the Sysmon Schema. I copied the XML details of the event log generated for Calculator.exe so that you can see what to expect. I have already taken care of that for you with HELK.

Ok, How Do I Tag Sysmon Rules?

If you go to the Sysmon site and go to the "Event Filtering Entries" part, you will find the following details:

"To have Sysmon report which rule match resulted in an event being logged, add names to rules: <NetworkConnect onmatch="exclude"> <Image name="network iexplore" condition="contains">iexplore.exe</Image> </NetworkConnect>"

So if I want to add a name to a rule that collects/include events generated by a process that ends with Calculator.exe, I can update my Sysmon config to the following:

Once I update the config, I have to also push an update to my Sysmon service

Figure 4. Update Sysmon Config with new rule name.

If I open the calculator app again, I should be able to see the RuleName field populated with the Calculator Rule tag in it:

Figure 5. Sysmon Calculator rule name.

MITRE ATT&CK Integration

One very good initial use case that I explained at the beginning of this post was  the automation of mapping security events and potential incidents from a Sysmon rule perspective to ATT&CK techniques information such as Tactic, Technique Name, Technique ID, Platform, etc. Following our initial basic calculator example, we can start tagging Sysmon rules that could relate to specific procedures defined in techniques used by adversaries.

Do I Just Pick Any Technique?

I usually recommend prioritizing what you can potentially see currently in your environment over just picking any technique in the matrix. For example, if you have Sysmon running in your environment and you are collecting "ProcessCreate" events, then you can prioritize techniques that require to have "Process Monitoring" or "Process command-line parameters" as data sources. Let's say we pick "Create Account - T1136"

Figure 6. Create Account Technique Information

ATT&CK Simulation Repos Help!

One thing that I love about the industry is that there are 'Red Team Simulation" projects that allow you to learn and test different variations of a specific technique.  My favorite projects out there that provide great information are Endgame's Red Team Automation (RTA) and RedCanary's Atomic Red Team (ART). I usually use the GitHub search bar on the repositories and look for a few initial commands or steps defined by ATT&CK in the techniques description information. For ART, you can also just go to the technique ID folder and learn more about it.

Figure 7. Endgame RTA

Figure 8. RedCanary ART

Add Sysmon Rule & Name

If your Sysmon config is already allowing you to capture events generated by the execution of net.exe due to the fact that you use your config to exclude instead of include events, you will have to change that in order to tag a specific Sysmon rule that could map directly to T1136. I updated mine to the following:

Why Don't You Add The Net.exe Condition to the Rule Name?

Great question! I recently parsed the whole ATT&CK database and made it part of a HELK Dashboard by default. If I look for net.exe by itself without any command arguments across the whole ATT&CK database, I find that there are around 13 techniques where net.exe is mentioned. That will be a lot of tags. This is why I recommend to be a little bit more specific if you want to start tagging and mapping Sysmon rule names to ATT&CK techniques .

Figure 9. net.exe across the whole ATT&CK database

Simulate The Technique

Run a few basic commands and check the results

net user /add wardog

Figure 9. Create Account simulation via net1.exe

Something interesting to mention after doing this exercise is that when the event that triggers a rule has other data fields without a rule name, it automatically excludes the RuleName tag value from the event. For example, the net.exe condition by itself does not have a rule name; However, CommandLine: user /add does. If net.exe is executed with user /add command-arguments, the event is shown with an empty RuleName. Only net1.exe shows with a rule name or tag. Keep that in mind when you start tagging rule names.

Figure 10. Create Account simulation via net.exe

Nice! Now, How Do I Parse the RuleName?

All those basic use cases make sense, but it is important to also cover how you could start using the flexibility of tagging Sysmon rules in your production environment. For the collection piece, you could use a WEF server and a Winlogbeat agent on the top to push data to a data lake or straight to your SIEM. I use KAFKA brokers to centralize the collection of several data sources and then an ELK stack to extract, transform, load, analyze and visualize the data.

One thing that I am sure you have noticed is that when we add several tags to one Sysmon rule, it separates the key=value by commas, so you will have to parse all that. If you are using an ELK Stack as your SIEM, you could use the Logstash KV filter plugin to parse the RuleName field values

Logstash KV Filter Config

According to Logstash documentation, the KV filter pluting helps automatically parse messages (or specific event fields) which are of the foo=bar variety.

  • source => The field to perform key=value searching on
  • field_split => A string of characters to use as single-character field delimiters for parsing out key-value pairs.
  • value_split => A non-empty string of characters to use as single-character value delimiters for parsing out key-value pairs.
  • prefix => A string to prepend to all of the extracted keys.
  • transform_key => Transform keys to lower case, upper case or capitals.
filter {
  if [log_name] == "Microsoft-Windows-Sysmon/Operational"{
    if [event_data][RuleName] {
      kv {
        source => "[event_data][RuleName]"
        field_split => ","
        value_split => "="
        prefix => "mitre_"
        transform_key => "lowercase"

Re-Simulate & Watch

Once, you have that filter in your Logstash pipeline, you will be able to transform/parse the RuleName field values of every endpoint that produces the data triggered by the Sysmon rule.

Figure 10. Event ID 1 - Sysmon Rule Tag

Figure 11. Event ID 1 - Sysmon Rule Tag metadata

That's it! I just wanted to share a little bit of my initial thoughts about utilizing the Sysmon rule tagging capabilities to start categorizing some of the data that you might be collecting via Sysmon. Even though this seems to be pretty straight forward, it is important to remember that some Sysmon rules might fall into the "Signature" vs "Situational Awareness" type of analytic. You can just add another tag named "analytic" and set it to Signature or Situational Awareness depending on your environment. Also, take in consideration that several techniques get repeated across several tactics when you tag Sysmon rules. I will be sharing more soon.

Monday, April 9, 2018

Welcome to HELK! : Enabling Advanced Analytics Capabilities

In the last few years, collecting and storing endpoint and network security event data has become an inexpensive task for organizations of all sizes. Buying extra physical hard drives or increasing the storage capacity of a server in the cloud is now more affordable than ever. Nowadays, it is common to see organizations even trying to collect every single log available across their enterprise in case it is needed for extra context during an investigation or simply just to monitor the functionality of key applications.

This concept, of course, has benefited security analysts from a data availability perspective. However, it has also created this overwhelming stage where there is so much data that traditional SIEM capabilities are limiting the way how data can be described or analyzed.

In this post, I am excited to introduce The Hunting ELK (HELK) to the community. HELK is an ecosystem composed of several open source frameworks working together with the main goal of empowering threat hunters and extending the functionalities of an Elastic ELK stack by enabling advanced analytics capabilities. This post will shortly introduce every component of the HELK and provide a few basic use cases to explain some of the benefits that it could bring to a hunt team.

I believe that in order to understand what it is that I am trying to solve with the HELK, it is important to understand what I like and wish I had when using a basic ELK stack (SIEM).

Note: Initial basic capabilities similar to the ones used by traditional SIEMs are part of the FREE and Basic elastic subscriptions. You need to purchase the Platinum subscription if you want to start using a few similar (not necessarily better) functionalities that the HELK provides. You can read more about elastic subscriptions and all the great features that you get if you pay here.

What I Like About You!


  • High scalability in data ingestion (Write) and data availability (Read)
    • When I do research at home or test a few things in larger environments, I love to ingest data as fast as it is generated and make it instantly available in my stack for analysis.
    • Elasticsearch has approximately a write rate of 1M+ events per second and default refresh interval of 1 second for data to be readable.
  • Simple data model
    • JSON
    • Flexible Schema
  • Restful API
    • Custom flexible aggregations and operations via its flexible API
  • Sharding
    • It allows horizontal split/scale of the data
    • It allows you to distribute and parallelize operations across shards (potentially on multiple nodes) thus increasing performance/throughput


  • Native real time exploration on the top of elasticsearch
  • Dashboard flexibility
    • Drag and drop functionalities
  • Custom visualizations via Vega!
    • Declarative format to make custom data visualizations
    • Integration of interactive views using D3
    • Multiple data sources in one graph


  • Pluggable pipeline architecture
  • Integration with messaging queues technologies
    • Enhancing real-time streaming
  • Horizontally scalable data processing pipeline
  • Great flexibility when normalizing and transforming data
    • Ability to write custom Ruby scripts to manipulate data at the pipe level
  • Native integration with Elasticsearch

Clearly, right out of the box, with a basic ELK stack, one can easily have a traditional SIEM up and running in a few minutes. My journey with an ELK stack started early last year, and I blogged about how to set one up. If you are interested in building your own manually, you can follow the steps here. If you are using a similar basic setup, your build might look similar to the following:

Figure 1: Basic ELK Stack design

Now, I Wish I Had..

A Declarative Structure Language like SQL

What if you could easily run the following query on an elasticsearch database and get results right away?

SELECT process_guid,process_name,command_line FROM sysmon WHERE event_id=1 limit 10”

Figure 2: SQL query results

Yes, I know! You can get a similar result in Kibana ;)

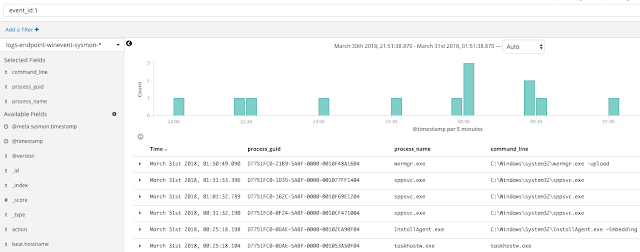

Figure 3: Kibana results. similar to basic SQL query

However, what if I wanted to do the following:
  • WHERE the event IDs are 1 for process create and 3 for network connections
  • SELECT specific fields FROM a Sysmon Index
  • WHERE the destination IP addresses are specific internal IPs
  • JOIN those events ON equal Process GUID values to enrich the data and get process and network information on the same record.
Yes, a simple JOIN inside of a Sysmon index. In a SQL-like query, it might look something like this:

SELECT p.process_parent_name, p.parent_command_line, p.process_name,p.command_line, p.hash_sha1, n.dst_ip FROM sysmon p JOIN sysmon n ON p.process_guid = n.process_guid WHERE p.event_id = 1 AND n.event_id = 3 AND n.dst_ip LIKE '172.%' limit 5”

Figure 4: Results of basic JOIN with a basic SQL query

Can you do that in Kibana when working with an elasticsearch database with a flat schema? You might end up with an OR statement for event IDs 1 and 3, and the rest you can see it in the figure below. Not efficient!

Figure 5: Attempting to get the same results (SQL-like query) with Kibana

That was just one JOIN query on the same index. Just imagine how it would be across several indices. Elasticsearch is document-oriented and not a structured relational database so it is hard to run even basic JOIN queries across several indices since there is not a concept of a join key. According to elastic’s Query DSL documentation, performing full SQL-style joins in a distributed system like Elasticsearch is prohibitively expensive. One way that Elasticsearch sort of allows you to have a similar concept of a JOIN (not necessarily a SQL JOIN) is via nested documents and parent child. However, it becomes very cumbersome when one tries to use nested queries to accomplish a similar SQL-like JOIN result. You usually end up with a complex hierarchical query where you have to define the parent, the child and other information that makes the operation very inefficient. Elasticsearch apparently is planning on releasing an Elasticsearch SQL functionality in their X-Pack 6.3 public release, but it will be available only starting with the platinum commercial subscription. If you want to learn more about Elasticsearch SQL, I recommend watching this great video by Costin Leau from elastic.

Graph Analytics Capabilities

As you already know, finding relational data patterns in an elasticsearch database is not an easy task. As shown before, one could start joining event sources and describe their relationships with the help of SQL-like queries. However, it could turn a little bit challenging defining several JOINs when the data and relationships grow tremendously (so-called join pain). Therefore, I think it would be nice to be able to describe those large data sets via graph algorithms and find structural patterns in a more intuitive way via declarative graph queries.
It is important to remember that graph analytics is not just simply collecting data and showing a graph with nodes (vertices) connected to each other via common relationships (edges). A graph is just a logical representation of the data. I have seen visual representations of graphs where there were so many vertices displayed, it was hard to even know what exactly was going on. A graph with thousands vertices all in one image with nodes on the top of each other is not useful. One needs to either filter that down or apply graph analytics to identify specific structured patterns or describe the data in a more intuitive and efficient way. What if I had a large data set of Windows Security event logs and I wanted to identify patterns of users authenticating to other systems in the network. Searching for successful logon events type 3 (network) might be a good start. The typical analysts view would be the following:

Figure 6: Windows Security Event Logs - Logon Type 3

Even though some might say that blue teamers think in lists, I believe that it is the technology in front of them that might be limiting the way how they think about the data. One could think of the data above, from an endpoint to endpoint perspective, the following way (portion of the data):

Figure 7: Representing a portion of the security event logs in a graph

However, how do you manipulate that data as a graph in kibana? In addition, it is easy to follow the figure above and count all the relationships per node. However, in a real environment, you will have so many relationships (edges) and nodes (vertices) that it could be hard to just look at a graph and make decisions from it. Enabling graph analytics would allow security analysts to:
  • Identify the relative importance of an endpoint or user based on the number of connections in comparison to other endpoints or users in the network.
  • Calculate the inbound and outbound connections from each endpoint (Directed Graph)
  • Group endpoints into connected subgraphs
  • Detect communities of endpoints or users
  • Search for structural patterns in the graph (Cypher-like Queries)

What if I wanted to describe basic structural parent-child patterns in a Sysmon process create dataset? It would be nice to be able to use Cypher-like queries like the following one:


Figure 8: Results of structure parent query

Elastic provides a few graphing functionalities, but only when you install X-Pack and purchase its Platinum subscription. You can learn more about it in the “Graphing Connections in Your Data” documentation in the Kibana User Guide. It does not provide a flexible way to apply graph algorithms or an easy declarative graph query language to define structural patterns. Also, graphing features provided by X-pack have limited support for multiple indices. According to the Graph Limitations documentation, the Graph API can explore multiple indices, types, or aliases in a single API request, but the assumption is that each "hop" it performs is querying the same set of indices. Currently, it is not possible to take a term found in a field from one index and use that value to explore connections in a different field held in another type or index.

Machine Learning Capabilities

A new signature, a new alert, another signature, another alert, and another alert!! Yes, that is most likely what you experience at work every single day as a security analyst. You ever wonder what it would be like to go beyond just detections built to catch the specific known bad? What about learning a little bit more about other analytics techniques that could help derive insights and make predictions or recommendations based on data? Yes, I wish I could implement and explore Machine Learning (ML) concepts on top of an ELK stack. According to Chio, Clarence; Freeman, David in “Machine Learning and Security: Protecting Systems with Data and Algorithms (Kindle Locations 282-283)”, at its core, machine learning is, “a set of mathematical techniques, implemented on computer systems, that enables a process of information mining, pattern discovery, and drawing inferences from data.” According to Chambers, Bill; Zaharia, Matei. in “Spark: The Definitive Guide: Big Data Processing Made Simple (Kindle Locations 13051-13053)”, the best ontology for machine learning is structured based on the task that you’d like to perform. The most common tasks include:
  • Supervised learning, including classification and regression, where the goal is to predict a label for each data point based on various features.
  • Recommendation engines to suggest products to users based on behavior.
  • Unsupervised learning, including clustering, anomaly detection, and topic modeling, where the goal is to discover structure in the data.
  • Graph analytics tasks such as searching for patterns in a social network.

On May 4th, 2017, Elastic announced the first release of machine learning features for the Elastic Stack, available via X-Pack and its commercial Platinum subscription. It is important to mention that the machine learning features of X-Pack are focused only on providing “Time Series Anomaly Detection” capabilities using unsupervised machine learning. Don’t get me wrong, this is great to have!! It just would be nice to have the flexibility even when paying for a commercial license to be able to test additional ML use cases and implementations.

Streaming Processing Capabilities

Support for a declarative structured language like SQL or for new concepts such as graph analytics and ML on the top of an ELK stack would be great!!! But do you know what would be awesome? If I could also do all that, but in real time and via a distributed streaming engine.

According to Chambers, Bill and Zaharia, Matei in “Spark: The Definitive Guide: Big Data Processing Made Simple” (Kindle Locations 11049-11052), stream processing is the act of continuously incorporating new data to compute a result. In stream processing, the input data is unbounded and has no predetermined beginning or end. It simply forms a series of events that arrive at the stream processing system (e.g., credit card transactions, clicks on a website, or sensor readings from Internet of Things [IoT] devices).

Looking at our previous JOIN example, it would be awesome to stream-process similar structured queries that we used before as the data flows through the data pipeline and send the results over to an elasticsearch index.

Figure 9: Structured streaming

Figure 10: Structured streaming results sent to Elasticsearch and visualized via Kibana

As you can see in the images above, applying the structured transformation (SQL JOIN) to the data in real-time will make the data enrichment process a lot easier and more efficient. Some of the use cases for security analysts could include:
  • Real-time decision making
    • Identification of relationships and patterns in real time leads to faster detection and response
  • Data updates in real time
    • Data being enriched and updated in real time enables analysts to query the data faster downstream. (i.e JOINs)
    • ML models updates (The most challenging use case)
  • Interactive data pipelines (structured format)
    • This enables analysts to query the data in a structured way before it even gets to elasticsearch

Interactive Hunt Playbooks Support

Last but not least, one aspect of threat hunting that I feel is being considered more and more in the industry is the fact that it needs structure. Specially, during a hunting engagement, knowing what it is that you are trying to hunt for allows your team to align to the business use cases, priorities and threat landscape. Therefore, I wish I had a way to document and share the methodology I would use to explore and analyze data during a hunting engagement. This would be beneficial even for security analysts that are just starting in the field. In the image below you can see an example of a playbook that a hunter could follow to expedite the time of analysis and transformation of the data.

Figure 11: Notebook Example

Wouldn’t it be nice to have all that in one framework and in an affordable way (Open Source)?

Welcome To HELK!!!

The Hunting ELK or simply the HELK is one of the first public ELKs that enables advanced analytics capabilities for free. Every wish that I had became every reason to start building the HELK. In fact, all the examples shown throughout this post were performed with the HELK. This project was developed primarily for research, but due to its flexible design and core components, it can be deployed in larger environments with the right configurations and scalable infrastructure. Therefore, there are a variety of use cases that can be prototyped with it. The main implementation of this project is Threat Hunting (Active Defense).

Enabling Advanced Analytics

Figure 12: HELK advanced analytics frameworks

Core Components Definitions


"Kafka is a distributed publish-subscribe messaging system used for building real-time data pipelines and streaming apps. It is horizontally scalable, fault-tolerant, wicked fast, and runs in production in thousands of companies." Apache Kafka


"Elasticsearch is a highly scalable open-source full-text search and analytics engine. It allows you to store, search, and analyze big volumes of data quickly and in near real time. It is generally used as the underlying engine/technology that powers applications that have complex search features and requirements." Elastic


"Logstash is an open source data collection engine with real-time pipelining capabilities. Logstash can dynamically unify data from disparate sources and normalize the data into destinations of your choice. Cleanse and democratize all your data for diverse advanced downstream analytics and visualization use cases.” Elastic


"Kibana is an open source analytics and visualization platform designed to work with Elasticsearch. You use Kibana to search, view, and interact with data stored in Elasticsearch indices. You can easily perform advanced data analysis and visualize your data in a variety of charts, tables, and maps. Kibana makes it easy to understand large volumes of data. Its simple, browser-based interface enables you to quickly create and share dynamic dashboards that display changes to Elasticsearch queries in real time." Elastic

Apache Spark

"Apache Spark is a fast and general-purpose cluster computing system. It provides high-level APIs in Java, Scala, Python and R, and an optimized engine that supports general execution graphs. It also supports a rich set of higher-level tools including Spark SQL for SQL and structured data processing, MLlib for machine learning, GraphX for graph processing, and Spark Streaming." Apache Spark


"Elasticsearch for Apache Hadoop is an open-source, stand-alone, self-contained, small library that allows Hadoop jobs (whether using Map/Reduce or libraries built upon it such as Hive, Pig or Cascading or new upcoming libraries like Apache Spark ) to interact with Elasticsearch. One can think of it as a connector that allows data to flow bi-directionally so that applications can leverage transparently the Elasticsearch engine capabilities to significantly enrich their capabilities and increase the performance." Elastic


"GraphFrames is a package for Apache Spark which provides DataFrame-based Graphs. It provides high-level APIs in Scala, Java, and Python. It aims to provide both the functionality of GraphX and extended functionality taking advantage of Spark DataFrames. This extended functionality includes motif finding, DataFrame-based serialization, and highly expressive graph queries." GraphFrames

Jupyter Notebook (JupyterLab)

"The Jupyter Notebook is an open-source web application that allows you to create and share documents that contain live code, equations, visualizations and narrative text. Uses include: data cleaning and transformation, numerical simulation, statistical modeling, data visualization, machine learning, and much more." Jupyter


The figure above is pretty straightforward and shows you how each piece is connected. However, I think it is important to provide some more context around the connections:

  • Data gets collected with Winlogbeats (Only shipper supported for now)
    • I encourage you to use WEF servers to aggregate all your Windows logs and then use winlogbeats to ship the logs to Kafka
  • Kafka stores event logs on specific topics and publish them to anyone who subscribe to them
  • There are two applications that can subscribe to Kafka topics
    • Logstash subscribes to specific topics available in Kafka. It collects every single log available in the Kafka brokers
    • Spark also has the capability to subscribe to specific Kafka topics, but it uses them to apply other advanced analytics not available in Logstash. Structured streaming is possible with Spark and Kafka.
  • Logstash sends data to Elasticsearch
  • Data gets visualized via Kibana
  • ES-Hadoop allows Spark to communicate with Elasticsearch
  • Jupyter Lab Notebook is the default Python Driver for Pyspark (Spark’s Python Language API). Therefore, every notebook created in Jupyter will automatically have the option to use Spark Python language APIs. There are other languages available such as Scala and SQL.
    • Graphframes can be imported via Pyspark and Scala in Jupyter

Current Status

The project is currently in an alpha stage, which means that the code and the functionality are still changing. We haven't yet tested the system with large data sources and in many scenarios. We invite you to try it and welcome any feedback.

Getting Started

You can start playing with the HELK in a few steps:
HELK Download
  • git clone

HELK Install
  • cd HELK/
  • sudo ./
For more details, visit the HELK’s Wiki on GitHub.


I would love to make the HELK a more stable build for everyone in the community. If you are interested on helping me accomplish that, and adding some other great capabilities to it, PLEASE feel free to submit a pull request. GitHub Link: This is all for today! This was just an introduction to the HELK. I tried to keep it as simple as possible in order to cover most of its capabilities in basic terms. In the following posts, I will be expanding a lot more on the technical details of each component and showing a few use cases via Jupyter Notebooks so that you can try them at home too. I am also learning while in the process of developing the HELK, so I would really appreciate your feedback!!
